GOI Calibration Notes

RECORDER CALIBRATION

0.5 Volts (500 Millivolts) Should Produce 10 Inches of Pen Deflection

12.5 Millivolts / Minor Chart Division

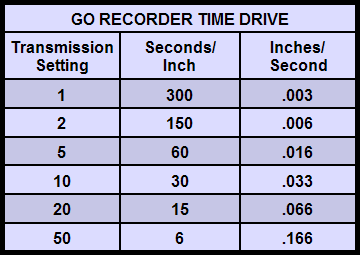

GO RATEMETER OUTPUT (SENSITIVITY) SETTING

O = D x S x 12.5
                C

Where:
O - Recorder Output (Sensitivity) Ten Turn Dial Setting
D - Number of Minor Chart Divisions Pen Deflection for "C"
S - Ratemeter CPS Scale (50, 100, 500, 1000, etc.)
C - Counts per Second to Produce "D" Pen Deflection
