Surface Wiring Color Codes

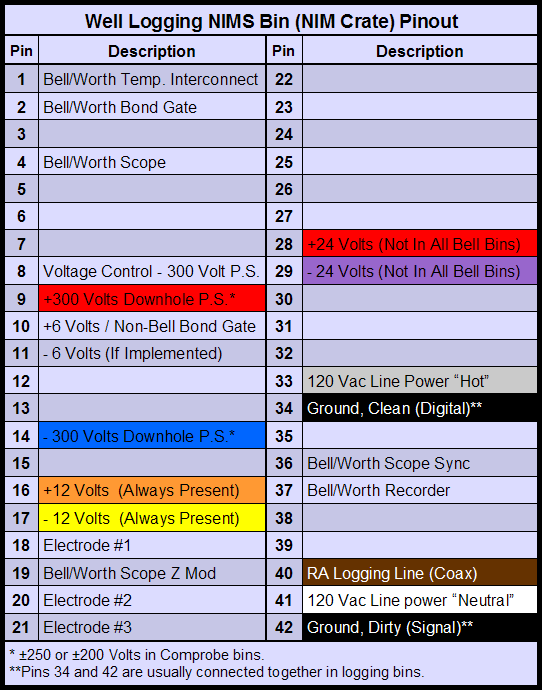

There is a great deal of variation from manufacturer to manufacturer with respect to wire color coding in surface well logging electronics.  The following color code information is somewhat standard; AnaLog Services, Inc. adheres to this color code scheme in new construction and in repair or modification work unless there is an inconsistency with existing wiring:

See also Teflon Wire Trivia, Teflon Tubing Trivia, Downhole Wiring Color Codes and Tool Connector Pinouts, NIMS Bin Trivia, and MS Cylindrical Connector Trivia.
