Sample "ADA" Pressure MIT

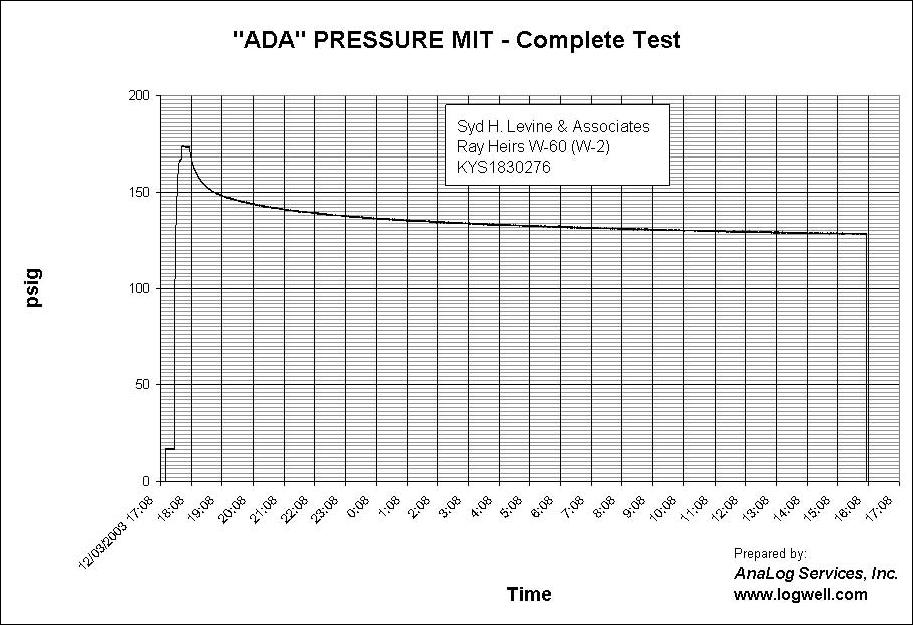

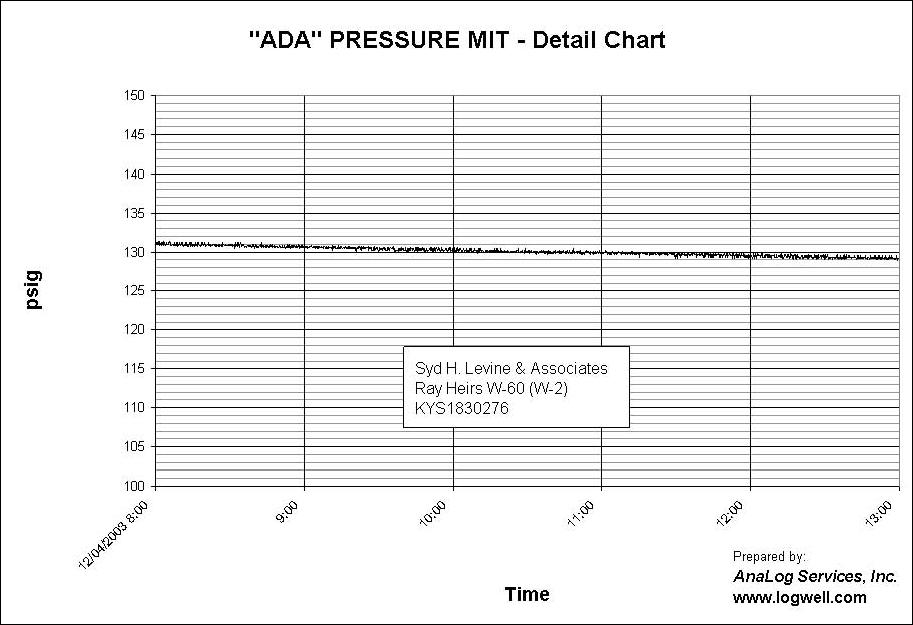

The documents below are from an actual "ADA" Pressure MIT performed on a well in Hancock County, Kentucky.  This test was recorded on a 12 bit data logger using a 0-500 psi pressure transducer.  Internal mechanical integrity is clearly demonstrated by this MIT for the well at issue.

Summary Report (pdf file)

ADACALC 3.0 Printout (pdf file)

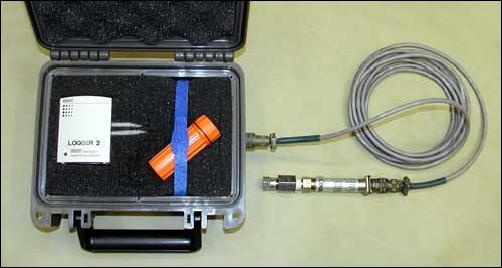

One of the AnaLog Services, Inc. data loggers with 4-20 milliamp pressure transducer attached and desiccant container in place (orange vial).  This unit logs the pressure, temperature, humidity, and battery condition of two different battery packs.  The pressure transducer stows in the waterproof case for transport.
